VG8300N nodular cast iron flanged valve series is primarily designed to regulate the flow of water and steam in response to the demand of a controller in heating, ventilating, and air conditioning applications. Valves are available in a 2-way configuration and have a specially designed plug, which, through balancing of pressure, allows higher close-off pressures with standard actuator combinations. They are compatible with a variety of electric linear actuators.

VPMA Pressure Independent Control Valve (PICV) performs the function of two valves (balancing and adjustments) in a unique body that allows the adjustment of the flow rate in case of partial load of the system, and also ensures a stable adjustment of the supply connected to it. Valves are available in a 2-way configuration. VPMA range covers valves from DN50 to DN250 and a flow capacity from 21.000 l/h to 240.000 l/h. VPMA valves are compatible with linear actuators from the VAP series.

VP1000 Pressure Independent Control Valve (PICV) performs the function of two valves (balancing and adjustments) in a unique body that allows the adjustment of the flow rate in case of partial load of the system, and also ensures a stable adjustment of the supply connected to it. VP1000 proposes three models: axial, compact axial, and ball. The VP1000 range covers valves from DN15 to DN50 and a flow capacity from 150 l/h to 18.000 l/h. Axial and compact series are compatible with linear actuators from the VA-7480 and VA-7080 series. The ball valve series is compatible with rotary actuators from the VA9310 and VA9208 series.

VGS800 cast bronze valve series is primarily designed to regulate the flow of water in response to the demand of a controller in heating, ventilating, and air conditioning applications. Valves are available in 3 3-way mixing configurations, convertible to 2-way configurations. They are compatible with the VA-7700 and VA78x0 linear actuator.

VG9000 cast iron flanged valve series is primarily designed to regulate the flow of water and steam in response to
the demand of a controller in heating, ventilating, and air conditioning applications. Valves are available in 2-way and 3-way mixing configurations. They are compatible with a variety of electric linear actuators.

VG8000N nodular cast iron flanged valve series is primarily designed to regulate the flow of water and steam in
response to the demand of a controller in heating, ventilating, and air conditioning applications. Valves are available in 2-way, 3-way mixing, and 3-way diverting configurations. They are compatible with a variety of electric linear actuators.

VG8000H nodular cast iron flanged valve series is primarily designed to regulate the flow of water and steam in response to the demand of a controller in heating, ventilating, and air conditioning applications. Valves are available in 2-way, 3-way mixing, and 3-way diverting configurations. They are compatible with a variety of electric linear actuators.

VG7000 bronze valve series is primarily designed to regulate the flow of water and steam in response to the demand of a controller in heating, ventilating, and air conditioning applications. Valves are available in 2-way and 3-way mixing
configurations. They are compatible with VA-7310, VA-7700, and VA78x0 electric linear actuators and pneumatic actuators.

VG3000 forged brass valve series is primarily designed to regulate the flow of water in response to the demand of a controller in zone and terminal unit applications. Valves are available in 2-way, 3-way mixing, and 3-way with built-in bypass configurations. They are compatible with VA-708x thermal actuator and the VA-748x motorized actuator.

VG1600 Johnson Controls’ patented brass valve series is primarily designed to regulate the flow of water in response to the demand of a controller in 4-pipe terminal unit applications. Valves are available in a 270° 6-way configuration, carry out heating and cooling in a unique body. They are compatible with VA9905 rotary actuators.

VG1000 flanged valve series is primarily designed to regulate the flow of water and steam in response to the demand of a controller in heating, ventilating, and air conditioning applications . Valves are available in 2-way and 3-way mixing configurations. They are compatible with spring-return and non-spring-return rotary actuators.

VG1000 flanged valve series is primarily designed to regulate the flow of water and steam in response to the demand of a controller in heating, ventilating, and air conditioning applications . Valves are available in 2-way and 3-way mixing configurations. They are compatible with spring-return and non-spring-return rotary actuators.

VBF butterfly valve series is primarily designed to regulate the flow of water in response to the demand of a controller in heating, ventilating, air conditioning, and refrigeration applications. Valves are bidirectional, allowing positive shutoff with the flow in either direction. They are compatible with spring-return and non-spring-return rotary actuators.

The VAP series provides floating and proportional control. It can be mounted onto the VPMA pressure-independent valves.

The VA9905 Series Electric Non-Spring Return Actuator is a direct-mount actuator for VG1600 Series 270° Six-Way Ball Valves. It provides proportional control.

The VA-7080 Terminal Unit Valve Actuators series provides ON/OFF and DAT control in HVAC applications. The compact design of these actuators makes them suitable for installations in confined spaces, such as fan-coil applications. The VA-7080 series actuator is designed for field mounting onto VG3000 and VP1000 terminal unit valves.

The M9300 Series Electric Non-Spring Return Actuators provide control of dampers in HVAC Systems with 8, 10, 16, 20, and 35 Nm rated torque. These bidirectional actuators do not require a damper linkage and are easily installed on round shafts or square shafts. An optional line voltage auxiliary switch kit can be field-installed to indicate an end-stop position or perform
switching functions within the selected rotation range.

The VA9203 Series Electric Spring Return Actuators are direct-mount actuators. These bidirectional actuators are used to provide accurate positioning on VG1000 Ball Valve Series, DN15 up to DN25.

The VA-9104 non-spring return actuator series provides on/off, floating, and proportional control. It has been developed to be mounted onto ball valves from the VG1000 series (DN15 to DN25).

The VA-9070 series provides on-off, floating, and proportional control. It develops nominal torques from 68Nm to 2300Nm. It can be mounted onto VFB butterfly valves.

The VA7820 – VA7830 Spring Return Actuator series provides on/off, floating, and proportional control. They develop a nominal force of 1000N and can be mounted onto VG7000 and VGS800 threaded valves, as well as VG8000 and VG9000 flanged valves.

The VA7810 series provides on/off, floating, and proportional control. It develops a nominal force of 1000N and can be mounted onto VG7000 and VGS800 threaded valve, as well as VG8000 and VG9000 flanged valves.

The VA-7700 series provides floating and proportional control. It develops a nominal force of 500N and can be mounted onto VG7000 and VGS800 threaded valves, as well as VG9000 flanged valves.

The VA-748x series provides floating and Proportional controls, with position feedback and a fail-safe position. The compact design of this actuator makes it suitable for installation in confined spaces, such as fan coil, chilled ceiling, manifolds, etc. The VA-748x actuators can be mounted onto VG3000 and VP1000 terminal unit valves, but, due to their adaptive stroke design, they can be installed over most of the terminal unit valves on the market.

The VA1125 series provides floating and proportional control. It develops a nominal force of 2500N and can be mounted onto VG8000, VG8300, and VG9000 flanged valves.

The VA1125 series provides floating and proportional control. It develops a nominal force of 2500N and can be mounted onto VG8000, VG8300, and VG9000 flanged valves.

V6W000 brass valve series is primarily designed to regulate the flow of water in response to the demand of a controller in 4 pipes terminal unit applications.
Valves are available in 6 6-way configurations, carry out heating and cooling in a unique body. They are compatible with VA9104 and VA9310 rotary actuators.

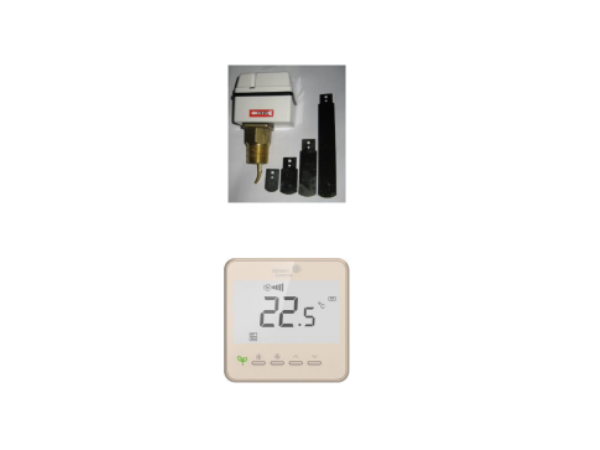

THERMOSTATS FOR AHU & FCU APPLICATION

The Smart Flow Control Series, which combines a V6W0000 Six-Way Ball Valve with a smart, programmable digital actuator (VMA), is the most efficient way to control technology-advanced applications.
The Smart Flow Control Series delivers flow control performance and greater flexibility through sensor connection and extensive capabilities. Room control can be easily integrated into the VMA by connecting an NS8000 Network Sensor.

The M9220 Spring Return Electric Damper Actuator series has been specially developed for the motorized operation of air dampers in Air Conditioning Systems. It provides a 20Nm torque. When the control signal is applied, the actuator drives the damper to the operational position. After a power failure, the stored energy in the spring
Immediately brings the damper to the safety position.

The M9208 Spring Return Electric Damper Actuator series has been specially developed for the motorized operation of air dampers in Air Conditioning Systems. It provides an 8Nm torque. When the control signal is applied, the actuator drives the damper to the operational position. After a power failure, the stored energy in the spring immediately brings the damper to the safety position. The compact design and universal adapter, fitted with a limitation of rotation angle, make this actuator highly versatile.

The M9100 Series Electric Actuators are direct-mount Actuators.
These bidirectional actuators do not require a damper linkage and are easily installed on round shafts or square shafts using the standard shaft clamp included with the actuator.
A single M9100 series electric non spring return actuator provides 8, 16, 24, or 32 Nm torque depending on the model.
Two integral line voltage auxiliary switches, available only on the M91xx-xxC models, indicate end stop position or perform switching functions within the selected rotation range.
M9100 series actuators provide 90° of rotation. A graduated scale from 0° to 90° and a position indicator provide a visual indication of stroke.

The M9100 Series Electric Actuators are direct-mount Actuators.
These bidirectional actuators do not require a damper linkage and are easily installed on round shafts or square shafts using the standard shaft clamp included with the actuator.
A single M9100 series electric non spring return actuator provides 8, 16, 24, or 32 Nm torque depending on the model.
Two integral line voltage auxiliary switches, available only on the M91xx-xxC models, indicate end stop position or perform switching functions within the selected rotation range.
M9100 series actuators provide 90° of rotation. A graduated scale from 0° to 90° and a position indicator provide a visual indication of stroke.

The VA9203 Series Electric Spring Return Actuators are direct-mount actuators.
These bidirectional actuators are used to provide accurate positioning on the VG1000 Ball Valve Series, DN15 up to DN25.

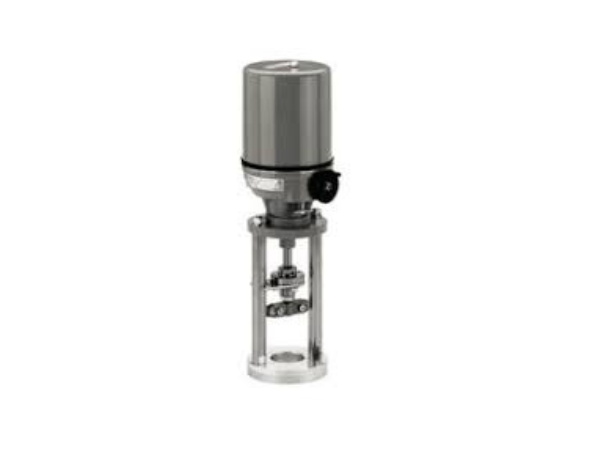

The FA-3000 series provides floating and proportional control. It develops a nominal force of 6000N and can be mounted onto VG8000 flanged valves.

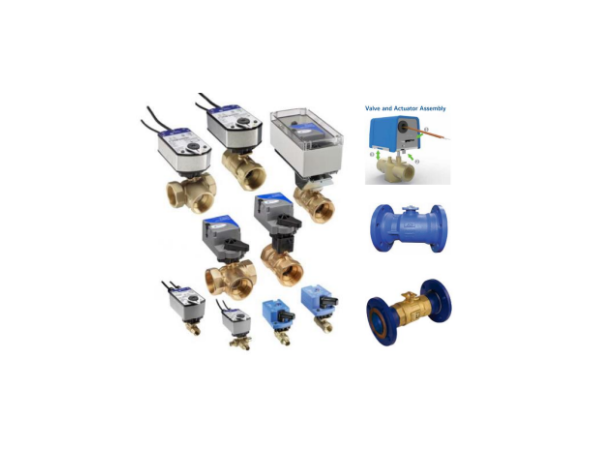

Terminal Unit Valves, Plant Valves, Pressure Independent Valves

Terminal Unit Valve Actuators, Non-Spring Return Plant Valve Actuators, Spring Return Plant Valve Actuators
